Wilwood Brakes Parking Brake Hat - Standard 171-12138
Wilwood Brakes Parking Brake Hat - Standard 171-12138

Wilwood Brakes Parking Brake Hat - Standard 171-12138

$269.99 ea
Model:3923328
Condition: NEW
Availability:
ARRIVING SOON!
Estimated arrival: 10/07/2020 (If Ordered Today)
24 available from WILWOOD ENGINEERING as of 05/04/2020
Fitment:
Supplier has not provided any fitment data for this product.
Shipping Note:Standard Delivery
Qty:

Can't Find your Part?

We'll find it for you. Give us a call at 855.444.6872 and we'll source that discontinued or hard to find part.

Why Choose Us?

No Brokerage or Duties - Canadian Owned & Operated - Shipped from Canada to your Door - Easy to Navigate Website - Access to New, Used & Discontinued Parts - Full Time Staff to Answer your Questions.

Disclaimer

Muscle Cars & Classics always recommends professional installation of our products. Buyer assumes risk of damage caused by improper installation.

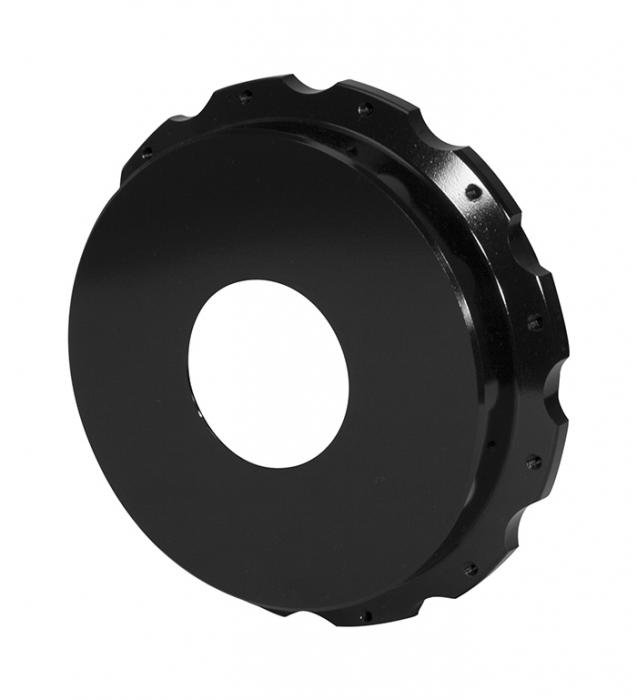

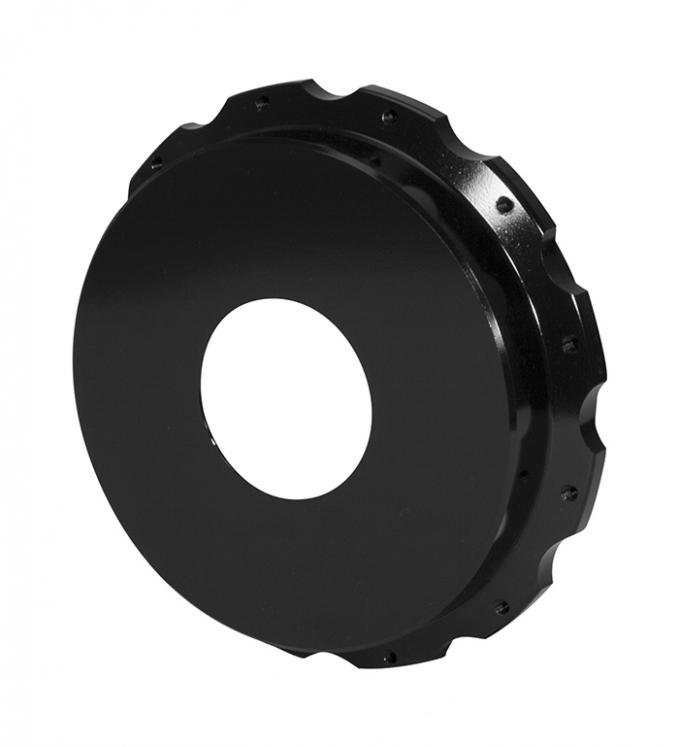

These premium grade cast iron hats are used with Wilwood's internal shoe parking brake kits. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.

Additional Notes
3.06 " diameter register with counterbore for register ring.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

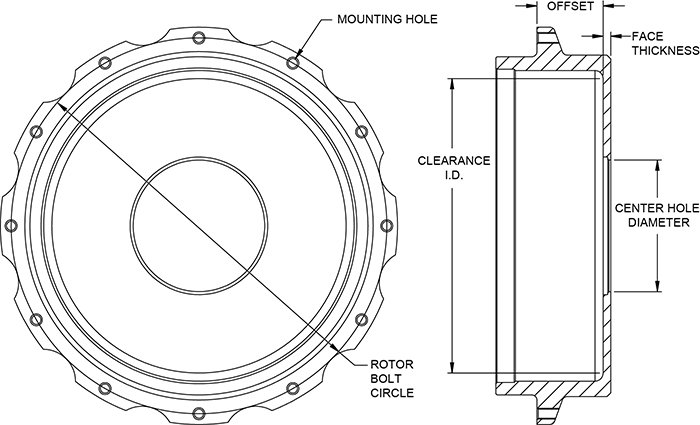

Hat Dimensions
Mount Hole Type Threaded
Rotor Bolt Circle (in) 12 x 8.75
Hat Offset (in) 1.540
Center Reg. (in) 3.06
Hat Type
Material Iron
Mount Style Fixed Mount
Finish Black E-Coat
Weight (lbs) 9.300
Bolt Circle Dimensions
Hat Bolt Circle 1 Blank
Application Info
Application Note BB Parking Brake Kits
Hat Bolt Kit Part # 230-8217
Additional Hat Dimensions
Rotor Mount Hole Size (in) 1/4-28
Clearance I.D. (in) 6.85
Face Thickness (in) 0.18
Shoe I.D. (in) 7.23
